Donjon Marine deck barge

DECK SPUD BARGE

Stepping Stone

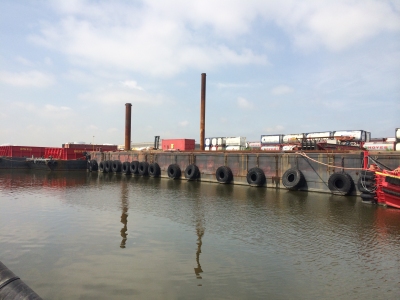

Deck Spud Barge Stepping Stone

Deck Spud Barge Stepping Stone


OFFICIAL NUMBER
530005

YEAR BUILT
1970

BUILDER
Equitable Equipment Co.

CONSTRUCTION
All steel

DIMENSIONS
Length:
200.0 ft.
 / 60.96 m
Width:
56.0 ft.
 / 17.07 m
Depth:
13.3 ft.
 / 4.06 m
Skegs:
Yes
Compartments:
10

CONFIGURATION
Rectangular with flat deck, straight sides, similar curv-shaped raked ends with two (2) fixed skegs aft, and a flat bottom.

HULL EQUIPMENT
• Three (3) fixed steel flat bar hull guards
• Two (2) fixed vertical steel pipe tire-covered fender racks at aft
• One (1) built-down pushing knee centerline aft

DECK EQUIPMENT
• Four (4) double bitts
• Eight (8) 36" cleats
• Ten (10) oval hatches on low coamings with hinged covers
• Four (4) internal pipe spudwells
• Four (4) 60' x 30" pipe spuds

LIGHTSHIP WEIGHT (Est.)
1,298 GRT
