OFFICIAL NUMBER
1091193
YEAR BUILT
2000

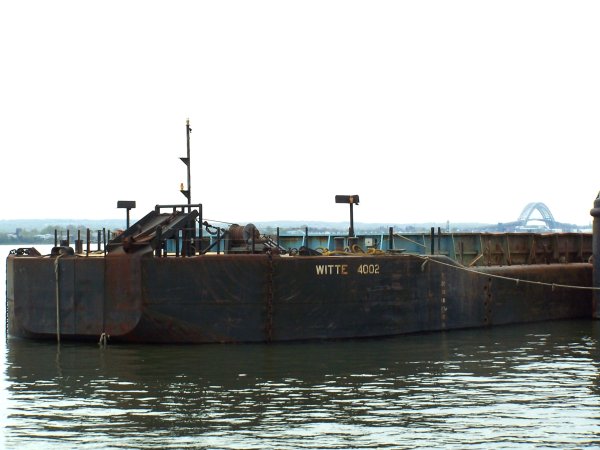

BARGE
All welded steel construction, having one end raked (forward/towing end) and one end square.
CAPACITY
4,000 yd3
ACCOMMODATIONS
Below deck accommodations & sleeping quarters.
CLASSIFICATION
American Bureau of Shipping
• Maltese Cross A-1 Barge
• International Load Line
• Cargo Gear Certificate
United States Coast Guard
• Certificate of Inspection
|
|
TOWING GEAR
Main Towing Bridle
Sea-Link Towing Plate connected to (2) 60' long legs of 1¾" diameter wire rope and (9) links of 2” stud-link ORQ chain connected with 52 ton SWL double-nut towing safety shackles.
Emergency Towing Hawser
13" circumference by 600' long with trailing line and buoy with quick release mechanism.
Emergency Anchor
2,000 lb. steel danforth-style anchor with 14 links of 1¼” Grade 2 stud anchor chain and 941 ft. of 1" diameter galvanized wire rope. Anchor winch is a McElroy Winch Model 633-9.9HB.
ROUTES
Coastwise & Registry
DIMENSIONS
Length:
|
240' 0"
|
Breadth:
|
54' 0"
|
Depth:
|
22' 0"
|
Tonnage (Gross):
|
2,395 GRT
|
Tonnage (Net):
|
2,395 NRT
|
|
